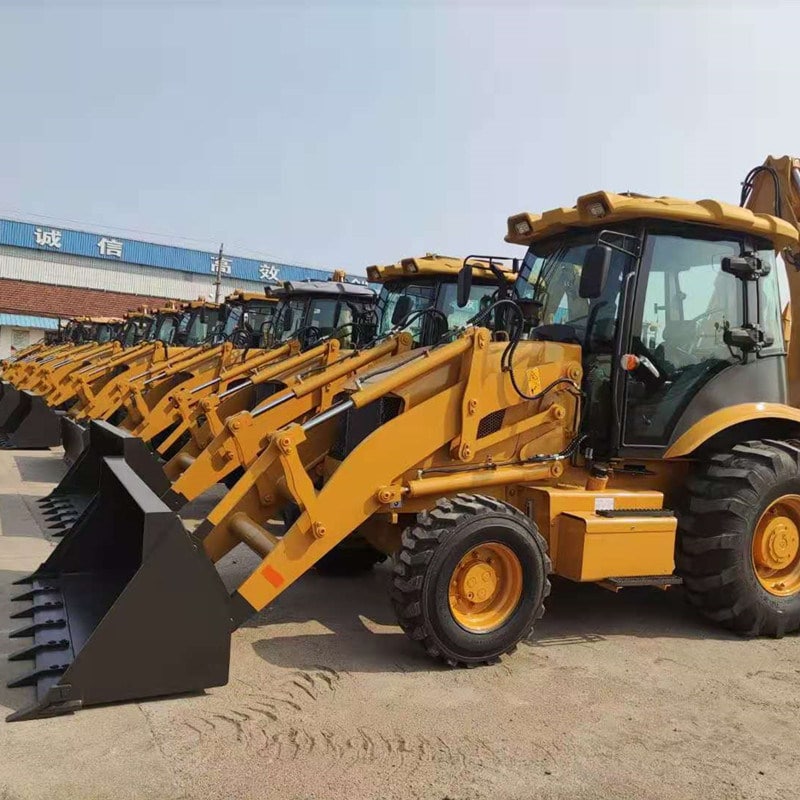

ETMG 8TON BACKHOE LOADER WITH 2.5 TON LIFTING CAPACITY
Elite backhoe loaders are machines that combine trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate. It adopts 75kW famous brand Yuchai turbocharged powerful engine and all top quality parts. Can be used for building, construction. mining and farm work.
| Model | ET388 BACKHOE LOADER |
| Weight(kg) | 8200kg |
| Wheel base(mm) | 2200 |
| Min ground clearance(mm) | 300 |
| Dimension(mm) | 6100x2365x3752 |
| Engine | Yuchai YC4A105Z-T20 75kW |
| Rotating speed(rmin) | 2200 |
| Cylinders | 4 |
| Loading parameters | |
| Max. dump height(mm) | 2742 |
| Max. dump distance(mm) | 925 |
| Bucket capacity(m³) | 1 |
| Capacity(ton) | 2.5 |
| Excavating parameters | |
| Max. excavating depth(mm) | 4082 |
| Bucket capacity(m3) | 0.3 |
| Drive sytem | |
| Gear box | Fixed shaft power shift |
| Gears | 2 front 2 reverse |
| Steering system | |
| Type | Articulated full hydraulic steering |
| Steering angle(°) | 36 |
| Axle | |
| Type | Hub reduction axle |
| Tyre | |
| Model | 14-17.5/19.5L-24 |
| Pressure(KPa) | Air Over Oil Caliper Brake |
| Others | |
| Driving | 4×4 |
| Transmission type | Hydraulic |
Backhoe loader shipping, 2 units in one 40HC container
ETMG FACTORY,
