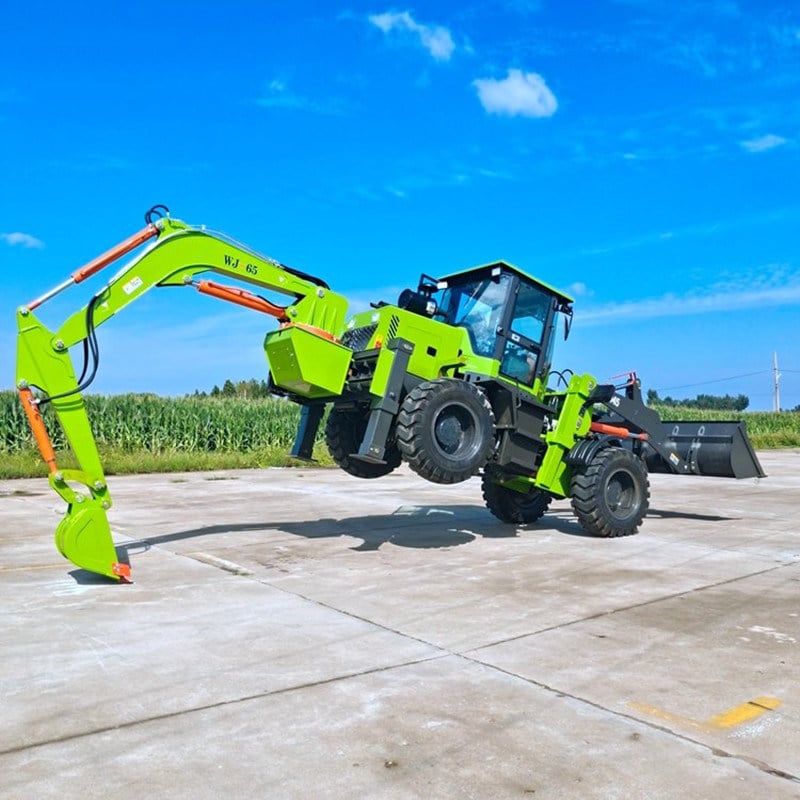

ETMG ET942-45 100hp 6.5 ton backhoe loader price
\
Elite backhoe loaders are versatile machines that combine trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate.
Specification of ETMG backhoe loader price ET942-45
Model | ET942-45 |
Weight(kg) | 6500kg |
Wheel base(mm) | 2550 |
Wheel tread(mm) | 2000 |
Min ground clearance(mm) | 270 |
Max. speed(km/h) | 45 |
Gradeability | 35 |
Dimension(mm) | 6300x2000x3000 |
Min turning radius(mm) | 4250 |
Engine | Yunnei 4102 turbocharged 76kW |
Rotating speed(rmin) | 2400 |
Cylinders | 4 |
Loading parameters | |
Max. dump height(mm) | 3500 |
Max. dump distance(mm) | 900 |
Bucket width(mm) | 2000 |
Bucket capacity(m³) | 1 |
Max. lifting height | 4700mm |
Excavating parameters | |
Max. excavating depth(mm) | 3000 |
Max. dump height(mm) | 4100 |
Max. digging radius(mm) | 4800 |
Bucket width(mm) | 500 |
Bucket capacity(m3) | 0.2 |
Max. digging height(mm) | 5600mm |
Ratating angle | 360 |
Drive sytem | |
Gear box | Fixed shaft power shift |
Gears | 4 front 4 reverse |
Torque convertor | 280 Hydraulic Torque Converter |
Steering system | |
Type | Articulated full hydraulic steering |
Steering angle(°) | 38 |
Axle | |
Type | Hub reduction axle |
Tyre | |
Model | 16/70-20 |
Pressure(KPa) | Oil brake |
Oil part | |
Diesel(L) | 70 |
Hydraulic oil(L) | 70 |
Others | |
Driving | 4×4 |
Transmission type | Hydraulic |
ET942-45 backhoe loader quick attached accessories,
