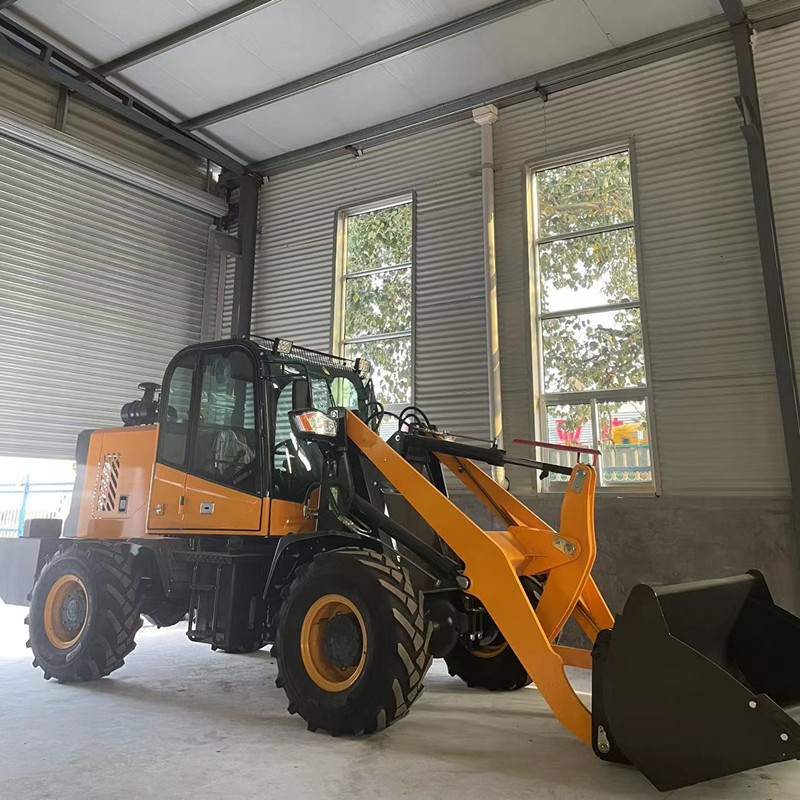

ZL928 Euro 5 mini loader with CE
ETMG 800kg front mini loader compact articulated mini compact loaders combine serious performance with small loader sizes so you can be productive, even in tight space. Pair them with a snow blower, grapple, pallet fork, broom or other attachment to increase your versatility, work smarter, and accomplish even more.
Characteristics of ETMG 800kg Euro 5 mini loader,
1.Adopt China famous brand engine with 39KW output power and high torque, strong excavating capability.
2.Full hydraulic steering system, energy saving and high work efficiency.
3.Increase the counterweight, improve the stability and bearing capacity of the complete machine.
4.Reinforcement structure. Strengthened front and rear frame.
5.Joystick control realized precise operation; air conditioner are option.
Items | Specification |
Weight(kg) | 3200kg |
Wheel base(mm) | 2350 |
Wheel tread(mm) | 1800 |
Max. speed(km/h) | 40 |
Gradeability | 30 |
Dimension(mm) | 3700x1800x2150 |
Min turning radius(mm) | 4000 |
Engine | Yunnei Euro 5 39kW |
Rotating speed(rmin) | 2400 |
Cylinders | 4 |
Loading parameters | |
Max. dump height(mm) | 2400 |
Max. dump distance(mm) | 800 |
Bucket width(mm) | 2000 |
Bucket capacity(m³) | 1.26 |
Max. lifting height | 4300mm |
Drive sytem | |
Gear box | Fixed shaft power shift |
Gears | 4 front 4 reverse |
Torque convertor | 265 Hydraulic Torque Converter |
Steering system | |
Type | Articulated full hydraulic steering |
Steering angle(°) | 35 |
Axle | |
Type | 130 axle |
Tyre | |
Model | 1000-16 |
Pressure(KPa) | Air brake |
Oil part | |
Diesel(L) | 40 |
Hydraulic oil(L) | 40 |
Others | |
Driving | 4×4 |
Transmission type | Hydraulic |
Braking distance(mm) | 3100 |
ETMG mini loader factory,
MINI LOADER SHIPPING IN CONTAINER,
Quick hitch attachments for mini loader,
Qingdao Elite Machinery Co., Ltd is located in Qingdao, a beautiful city famous for international business. With years of design and manufacturing experience we specialize in wheel loader, mini excavator, rough terrain forklift, backhoe loader. Our products are famous for excellent quality, flexible operation, easy maintenance and high efficiency.
With best service and top quality machines, we are expecting to build long-term cooperation with you. Welcome to visit our factory.
