ETMG 3ton lifting 100hp excavator loader
Elite excavator loader price are machines that combine trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate. It adopts 75kW famous brand Yuchai turbocharged powerful engine and all top quality parts. Can be used for building, construction. mining and farm work.
| Model | ET388 excavator loader |
| Weight(kg) | 8200kg |
| Wheel base(mm) | 2200 |
| Min ground clearance(mm) | 300 |
| Dimension(mm) | 6100x2365x3752 |
| Engine | Yuchai YC4A105Z-T20 75kW |
| Rotating speed(rmin) | 2200 |
| Cylinders | 4 |
| Loading parameters | |
| Max. dump height(mm) | 2742 |
| Max. dump distance(mm) | 925 |
| Bucket capacity(m³) | 1 |
| Capacity(ton) | 2.5 |
| Excavating parameters | |
| Max. excavating depth(mm) | 4082 |
| Bucket capacity(m3) | 0.3 |
| Drive sytem | |
| Gear box | Fixed shaft power shift |
| Gears | 2 front 2 reverse |
| Steering system | |
| Type | Articulated full hydraulic steering |
| Steering angle(°) | 36 |
| Axle | |
| Type | Hub reduction axle |
| Tyre | |
| Model | 14-17.5/19.5L-24 |
| Pressure(KPa) | Air Over Oil Caliper Brake |
| Others | |
| Driving | 4×4 |
| Transmission type | Hydraulic |

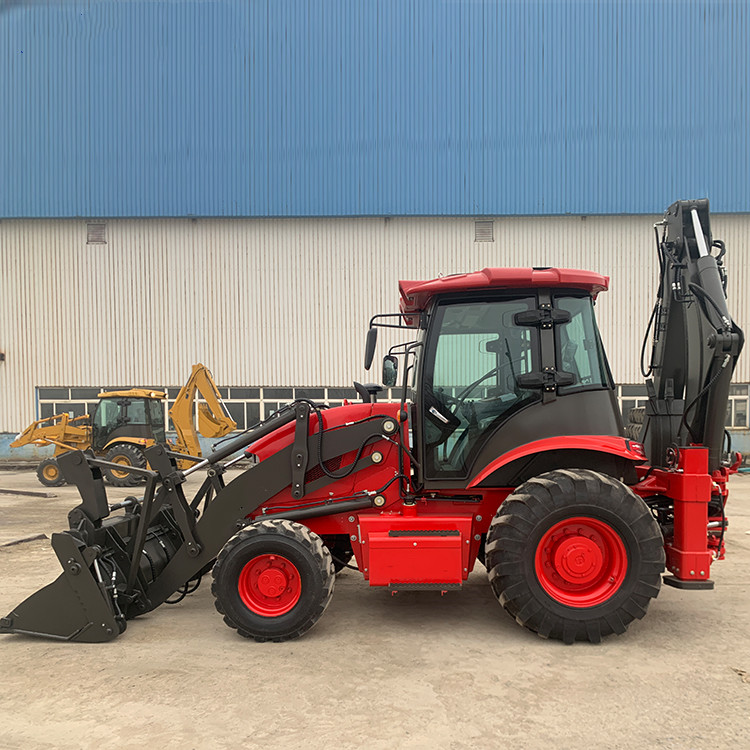

China excavator loader ETMG 388 pictures,
Excavator loader shipping, 2 units in one 40HC container
ETMG FACTORY,
