ETMG 76kW 2 ton front end loader with 4 in 1 bucket
ETMG 2 ton front end wheel loader with 4 in 1 bucket compact articulated loader combine serious performance with small loader sizes so you can be productive, even in tight spaces. Pair them with a snow blower, grapple, pallet fork, broom or other attachment to increase your versatility, work smarter, and accomplish even more.
Specification of 2 ton front end loader with 4 in 1 bucket,
| Model | ET920 loader with 4 in 1 bucket |
| Weight(kg) | 5400kg |
| Wheel base(mm) | 2400 |
| Wheel tread(mm) | 2300 |
| Min ground clearance(mm) | 245 |
| Max. speed(km/h) | 40 |
| Gradeability | 35 |
| Dimension(mm) | 4600x2000x2850 |
| Min turning radius(mm) | 4100 |
| Engine | Yunnei 4102 76kW Turbo charged |
| Rotating speed(rmin) | 2400 |
| Cylinders | 4 |
| Loading parameters | |
| Max. dump height(mm) | 3600 |
| Max. dump distance(mm) | 900 |
| Bucket width(mm) | 2000 |
| Bucket capacity(m³) | 1.5 |
| Max. lifting height | 4600mm |
| Drive sytem | |
| Gear box | Fixed shaft power shift |
| Gears | 4 front 4 reverse |
| Torque convertor | 280 Hydraulic Torque Converter |
| Steering system | |
| Type | Articulated full hydraulic steering |
| Steering angle(°) | 35 |
| Axle | |
| Type | Medium and large Hub reduction axle |
| Tyre | |
| Model | 16/70-20 |
| Pressure(KPa) | Air brake |
| Oil part | |
| Diesel(L) | 50 |
| Hydraulic oil(L) | 50 |
| Others | |
| Driving | 4×4 |
| Transmission type | Hydraulic |
| Braking distance(mm) | 3100 |

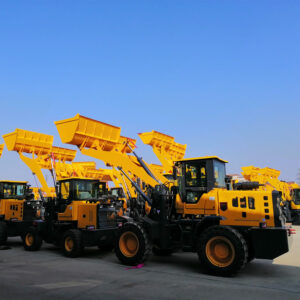

ETMG wheel loader factory,
Shipping in container,
Wheel loader attachment,
Qingdao Elite Machinery Co., Ltd is located in Qingdao, a beautiful city famous for international business. With years of design and manufacturing experience we specialize in wheel loader, mini excavator, rough terrain forklift, backhoe loader. Our products are famous for excellent quality, flexible operation, easy maintenance and high efficiency.
With best service and top quality machines, we are expecting to build long-term cooperation with you. Welcome to visit our factory.
