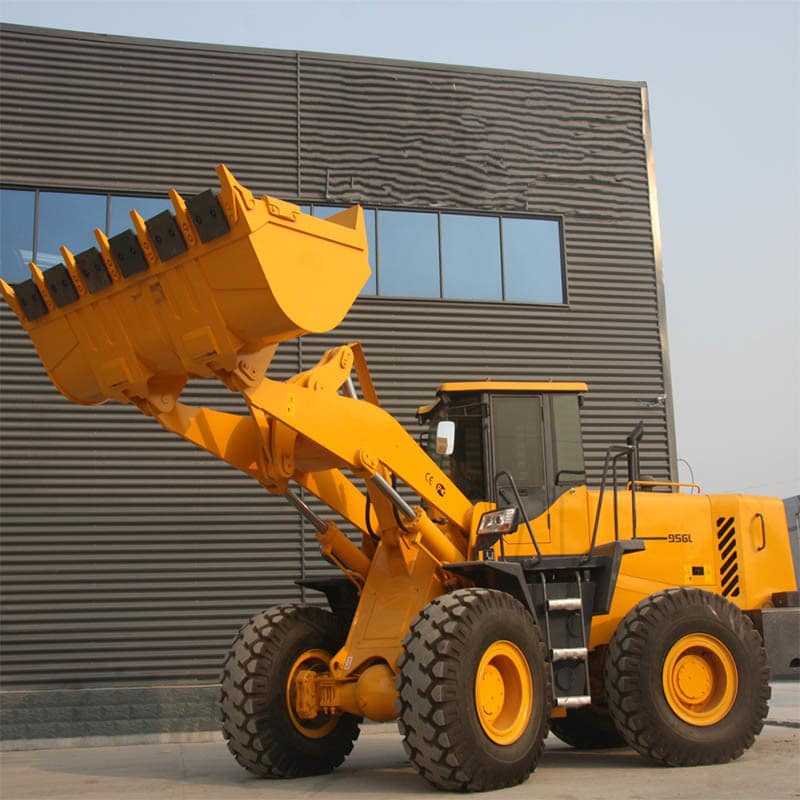

China famous brand ETMG 3m3 bucket wheel loader 5 TON ET956
Characteristics of wheel loader 5ton ET956:
1. Weichai WD engine is equipped as standard, and Sahngchai 6121 and Dongfeng Cummins can be installed optionally.
2. Full hydraulic transmission and weighted drive axle.
3. Select well-known hydraulic components, pilot operation, easy and durable operation.
4. Rugged box frame, with high-level automatic leveling function
5. (Quick change) option attachment: dozens of accessories such as wooden fork, pipe fork, flat fork, grass fork, rock bucket, large bucket, snow bucket, mixing bucket and so on.
6. The new luxury cab has a wide field of vision, spacious and comfortable, and convenient operation.
7. The luxury instrument panel, air conditioner and reversing image can be adjusted to make driving more comfortable.
8. Air top oil braking system, caliper disc brake.
9. According to customer needs, high unloading and long arm and other heterosexual products can be customized.
Specification of ETMG 956 wheel loader 5ton,
| Model | ET956 |
| bucket capacity | 3m³ |
| Rated load | 5000 kg |
| Wheel base | 3200 mm |
| Wheel Tread | 2250 mm |
| Min.ground clearance | 430mm |
| Max. dumping height | 3150 mm |
| Dump distance | 1080mm |
| Total times | 11s |
| Operation weight | 17800kg |
| Engine model | Weichai Steyr WD10G220E21 |
| Rated power/ speed | 162 kw/2200 rpm |
| Overall dimension(L*W*H) | 7920*3050*3400mm |
| Tyre | 23.5-25 |
ETMG wheel loader factory,
ET956 3m3 5 ton wheel loader with Weichai 162kW engine. Best choice for construction and mining.
Welcome to contact. We are availabe 24 hours. Quotation will be provided ASAP.
